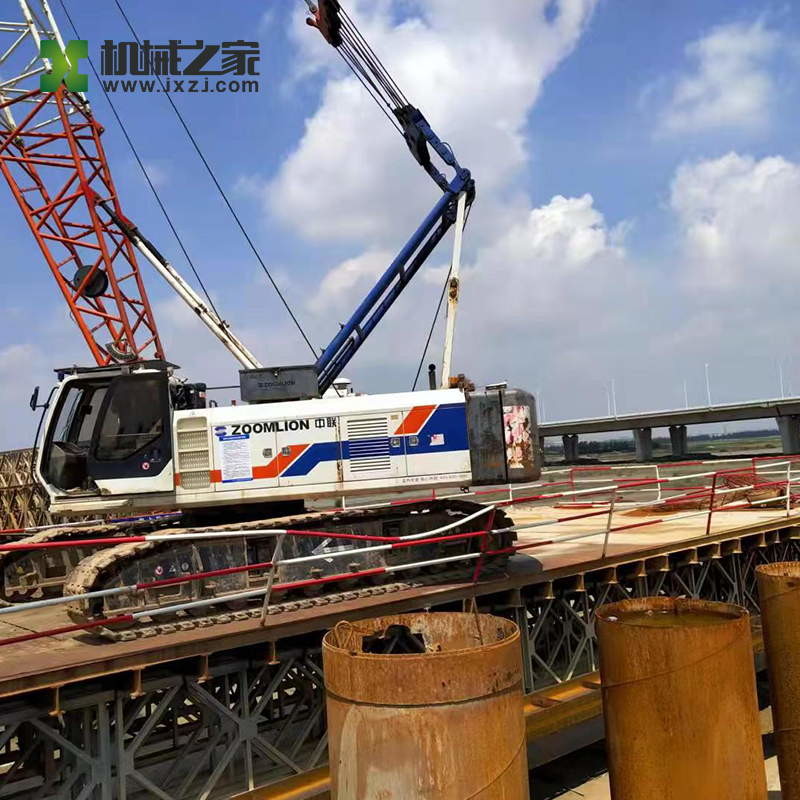

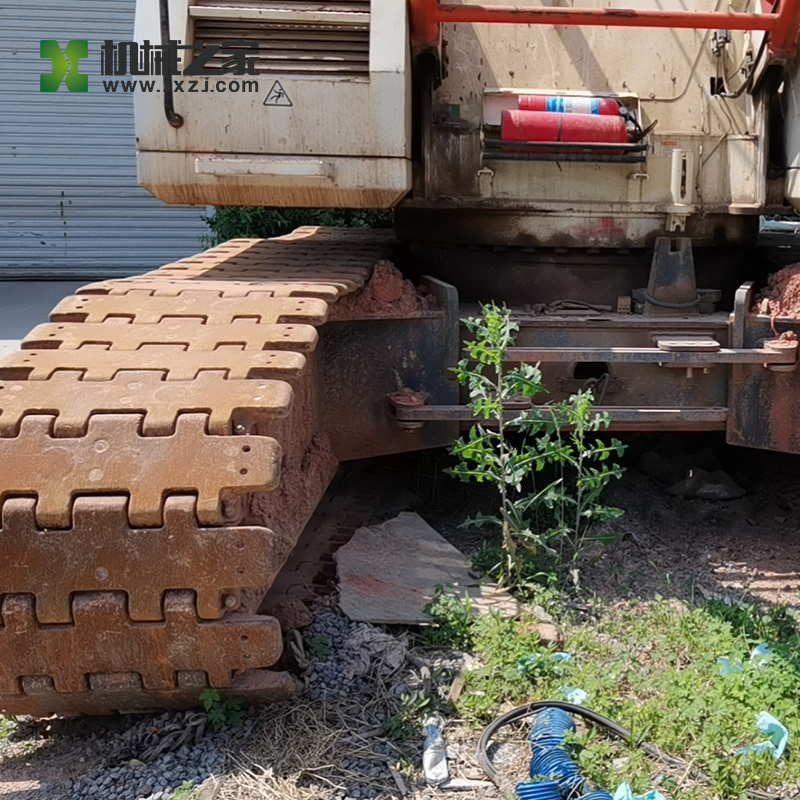

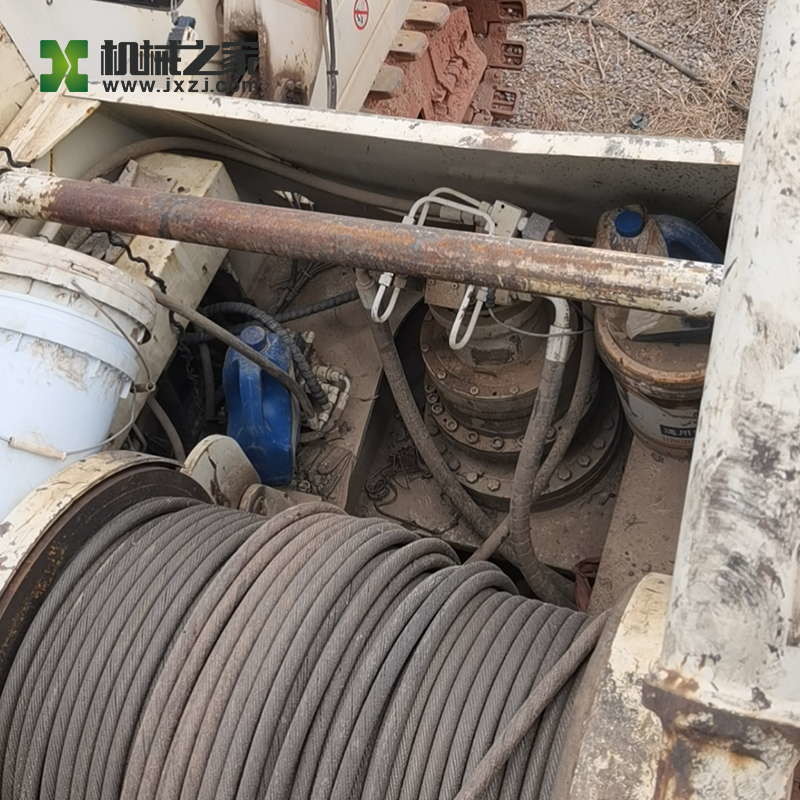

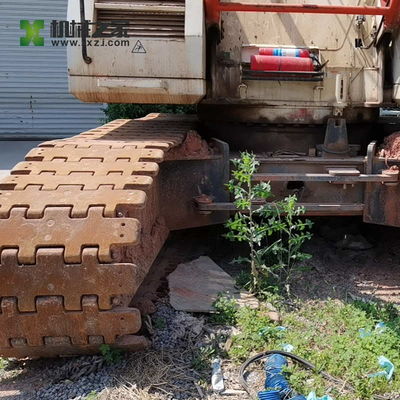

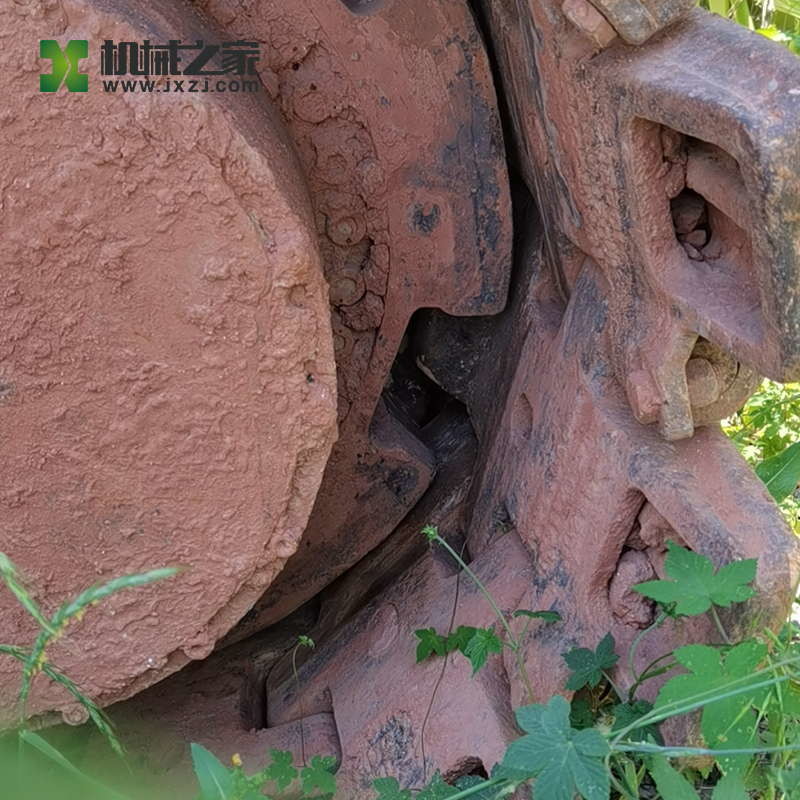

75ton Used Second Hand Crawler Cranes Zoomlion ZCC750V

  • 75ton Used Second Hand Crawler Cranes Zoomlion ZCC750V
  • 75ton Used Second Hand Crawler Cranes Zoomlion ZCC750V
  • 75ton Used Second Hand Crawler Cranes Zoomlion ZCC750V
  • 75ton Used Second Hand Crawler Cranes Zoomlion ZCC750V
Place of Origin China
Brand Name Zoomlion
Certification CE, ISO9001
Model Number ZCC750V
Minimum Order Quantity 1
Price Negotiable
Packaging Details Bulk
Delivery Time 5-7 Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Used Zoomlion Crawler Crane Condition Used
Maximum Lifting Height 12~57 M Maximum Lifting Weight 75ton
Jib 2 Section Specification 12800×3400×3250 MM
 production Date 2013
Highlight

75ton Second Hand Crawler Cranes

,

ZCC750V Second Hand Crawler Cranes

,

Zoomlion Used Crawler Cranes
Leave a Message
Product Description

Used Zoomlion Crawler Crane Zoomlion ZCC750V Second Hand Crawler Crane

Production Details:


Model NO.


 ZCC750V Boom Type Tower boom


Max. Rated Lifting Capacity


 750000 kg Max. Lifting Height of Jib 42m


Max Gradeability


 30% Working hours 8200H


Transport Package


 Compliant with export packaging requirements Specification 12800×3400×3250 MM


Trademark


 Zoomlion Place of Origin China


HS Code


   Supply Capacity 1 Units Per Month



  • ZCC750 is a small tonnage series product of Zoomlion. This product has a main boom and a fixed jib, and the main boom with jib is added to improve the efficiency of switching conditions.
  • Product design, manufacturing, inspection and other processes are in full compliance with CE standards and strictly implemented to ensure the most perfect quality products provided to customers. The domestic market share of products of the same model in the same industry is the first.
  • It is widely used in lifting operations and hoisting work in industrial and mining enterprises, construction sites, power plants, ports, wharfs, oil fields, warehouses, warehouses, etc.
  • The pictures on this product page are for reference only, please focus on the actual product.



This product was manufactured in 2013, with more than 8,000 hours of use, complete accessories, no task failures, and excellent performance. Welcome to inquire if you like it.



Product Parameters:

Specifications Unit Value
Max. lifting weight × amplitude (t × m) 75×3.5
Self-weight at basic boom (t) 62.5
Main boom length (m) 12~57
Fixed boom length (m) 6～18
Fixed boom Max. lifting capacity 6.5
Max. lifting capacity of main boom with jib 30
Fixed boom installation angle (°) 10,30
Main boom + fixed boom (m) 42＋18
Reel single rope speed Main lift (m/min) 120 Reel fourth layer
Auxiliary hoist (m/min) 120 Reel fourth layer
Amplitude (m/min) 56 Reel fourth layer
Rotation speed (rpm) 0～2.1
Walking speed (km/h) 0～1.6
Gradeability (%) 30
Ground specific pressure (MPa) 0.073
Overall Dimensions L×W×H (mm) 12800×3400×3250 Including herringbone boom and bottom section boom
Engine Weichai Rated power/speed (kW/rpm) 175/2200
Euro II Max. output torque/speed (Nm/rpm) 1000/1400～1600
  Emission Standards EU StageⅡ
Cummins USA Rated power/speed (kW/rpm) 153/1800
Max. output torque/speed (Nm/rpm) 929/1300
Emission Standards TIER3
Track gauge × ground length × track shoe width (mm) 2600×5440×800 Track frame retracted
4200×5440×800 Track frame extended
75ton Used Second Hand Crawler Cranes Zoomlion ZCC750V 075ton Used Second Hand Crawler Cranes Zoomlion ZCC750V 175ton Used Second Hand Crawler Cranes Zoomlion ZCC750V 2
