XCMG Used All Terrain Truck Crane XCMG XGC25T Ton Second Hand Crane

  • XCMG Used All Terrain Truck Crane XCMG XGC25T Ton Second Hand Crane
  • XCMG Used All Terrain Truck Crane XCMG XGC25T Ton Second Hand Crane
  • XCMG Used All Terrain Truck Crane XCMG XGC25T Ton Second Hand Crane
  • XCMG Used All Terrain Truck Crane XCMG XGC25T Ton Second Hand Crane
  • XCMG Used All Terrain Truck Crane XCMG XGC25T Ton Second Hand Crane
Place of Origin China
Brand Name XCMG
Certification CE , ISO9001
Model Number XGC25T
Minimum Order Quantity 1
Price Negotiable
Packaging Details Bulk
Delivery Time 5-7 Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition Used Maximum Lifting Height 10.6～41.1 M
Maximum Lifting Weight 25 Ton Jib 2 Section
 production Date 2016
Highlight

XCMG All Terrain Truck Crane

,

XGC25T All Terrain Truck Crane

,

XCMG 25 ton mobile crane
Leave a Message
Product Description

XCMG Used All-Terrain Truck Crane XCMG XGC25T Ton Second Hand Crane



Production Details:



Model NO.



XGC25T

 Boom Type Telescopic



Max. Rated Lifting Capacity



 250000 kg Max. Lifting Height of Jib 32.3m



Max Gradeability



 45% Working hours 5000h



Transport Package



 Compliant with export packaging requirements Specification

12805×2950×3035MM



Trademark



 XCMG Place of Origin China



HS Code



   Supply Capacity 1 Units Per Month

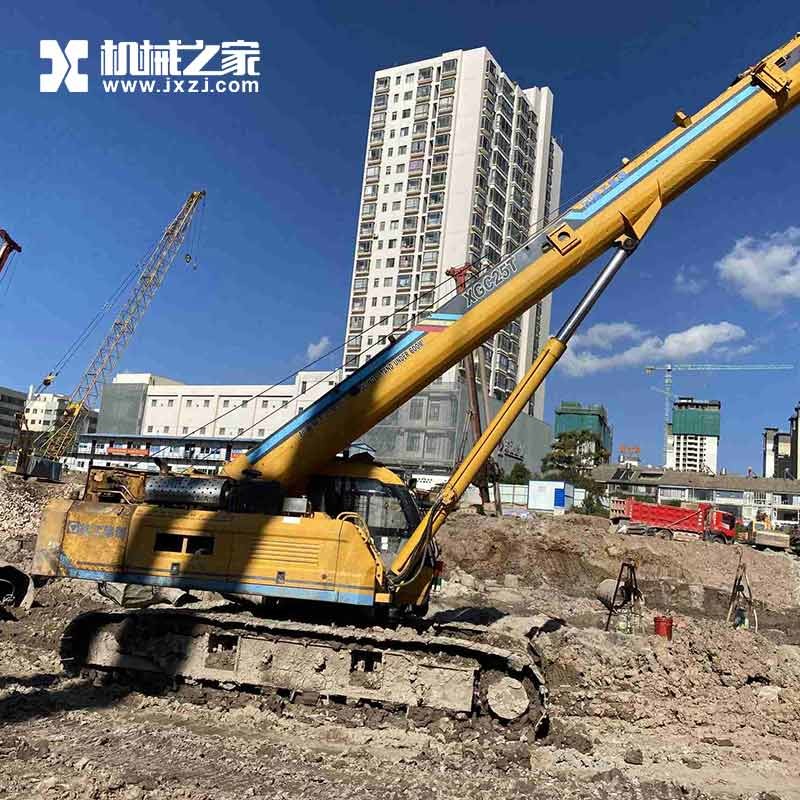

XGC25T telescopic boom crawler crane has a maximum rated lifting capacity of 25t and a four-section telescopic main boom. The length of the fully extended boom is 33m (10.6-33m) and the length of the jib is 8.15m, which can meet the needs of various operating ranges within the range of boom length.

The retractable crawler not only meets the requirements of high stability for hoisting operations, but also meets the requirements for the overall dimensions of the vehicle during transportation of the whole vehicle.



Product Parameters:

Item Unit Parameters
Parameters item - XGC25T
Dimensions
Overall length of the whole machine (mm) 12805
Overall width of the whole machine (extension/retraction) (mm) 4200/2950
Overall height of the whole machine (mm) 3035
Center distance between main and driven wheels (mm) 4330
Track shoe width (mm) 700
Weight parameter
Deadweight in traveling condition (kg) 34960
Traveling parameters
No-load speed (km/h) 2.6
Full load travel speed (km/h) 1.5
Min. ground clearance (mm) 357
Max. gradeability (%) 45
Ground pressure (MPa) 0.06
Dynamic parameters
Noise around the ear (dB) 80

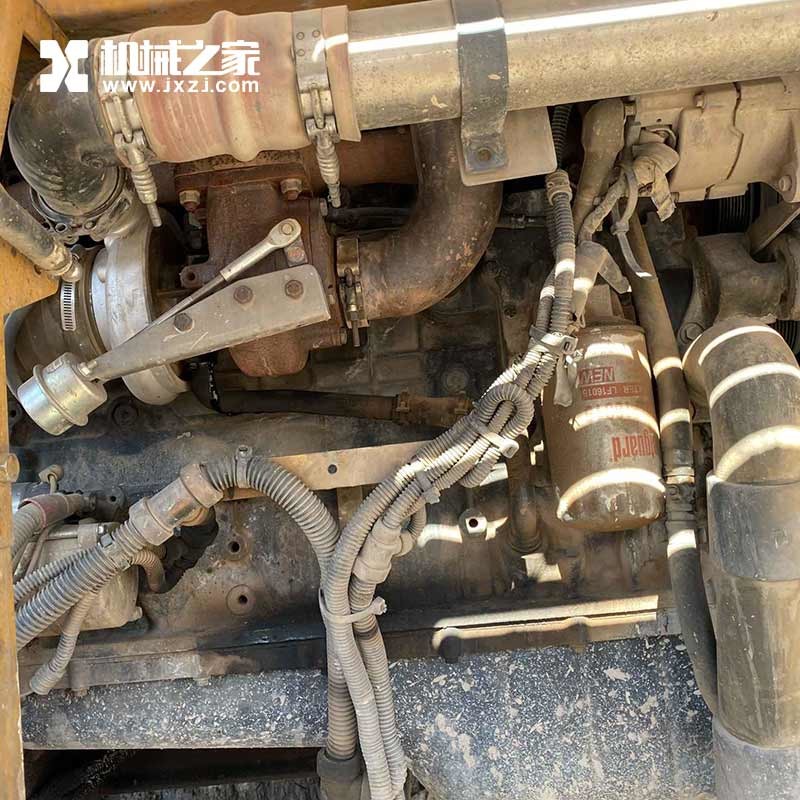

Engine model - QSB6.7
Engine rated power (kW) 142
Engine rated speed (r/min) 1800
Engine Emission Standards - Off-Road EU Stage IIIA
Volume parameter
Hydraulic tank volume (L) 400
Fuel tank volume (L) 450
Main performance parameters
Max. Rated Gross Lifting Weight (t) 25
Min. rated amplitude (m) 3
Max. load moment--Basic Arm (kN·m ) 970
Max. load moment--the longest main boom (kN·m ) 576
Lifting height--basic arm (m) 9.9
Lifting height--the longest main boom (m) 32.3
Lifting height--the longest main boom + jib (m) 39.8
Boom Length--Basic Boom (m) 10.6
Boom length--the longest main boom (m) 33
Boom length--the longest main boom + jib (m) 41.15
Jib mounting angle (°) 0°,15°,30°
Working speeds
Main boom lift time (s) 48
Main boom full extension time (s) 56
Max. rotation speed (r/min) 2.5
Lifting speed (no-load four layers) main lifting mechanism (m/min ) 140
Lifting speed (no-load four-layer) auxiliary lifting mechanism (m/min ) 140

XCMG Used All Terrain Truck Crane XCMG XGC25T Ton Second Hand Crane 0XCMG Used All Terrain Truck Crane XCMG XGC25T Ton Second Hand Crane 1XCMG Used All Terrain Truck Crane XCMG XGC25T Ton Second Hand Crane 2XCMG Used All Terrain Truck Crane XCMG XGC25T Ton Second Hand Crane 3
